Introduction

Accurate speed and incline settings are essential for achieving the desired training intensity and preventing injury. This guide explains how to calibrate a folding treadmill’s speed and incline, ensuring that each workout aligns with the planned metrics. Readers will learn the necessary tools, detailed procedures, and troubleshooting techniques. By following the steps, one can maintain consistent performance, whether using a compact home model or a more robust portable unit.

What You’ll Need

• A Phillips‑head screwdriver (most treadmills require it for adjustments)
• A level surface or bubble level to verify treadmill flatness
• A digital stopwatch or smartphone timer for speed verification
• Optional: ZPUFDYM Folding Incline Treadmill or Aiteid Compact Home Treadmill for reference models
• Optional: Thlevel Universal Treadmill Safety Key for safety during testing

Step 1: Prepare the Treadmill and Workspace

Place the treadmill on a flat, level floor. Use a bubble level placed on the console to confirm that the machine is not tilted. A tilted base can cause inaccurate speed readings because the belt may slip or stretch unevenly. If the floor is uneven, consider using a treadmill mat with built‑in leveling pads. Ensure the power cord is safely routed away from foot traffic to avoid accidental disconnection.

Step 2: Verify the Power Supply and Safety Key

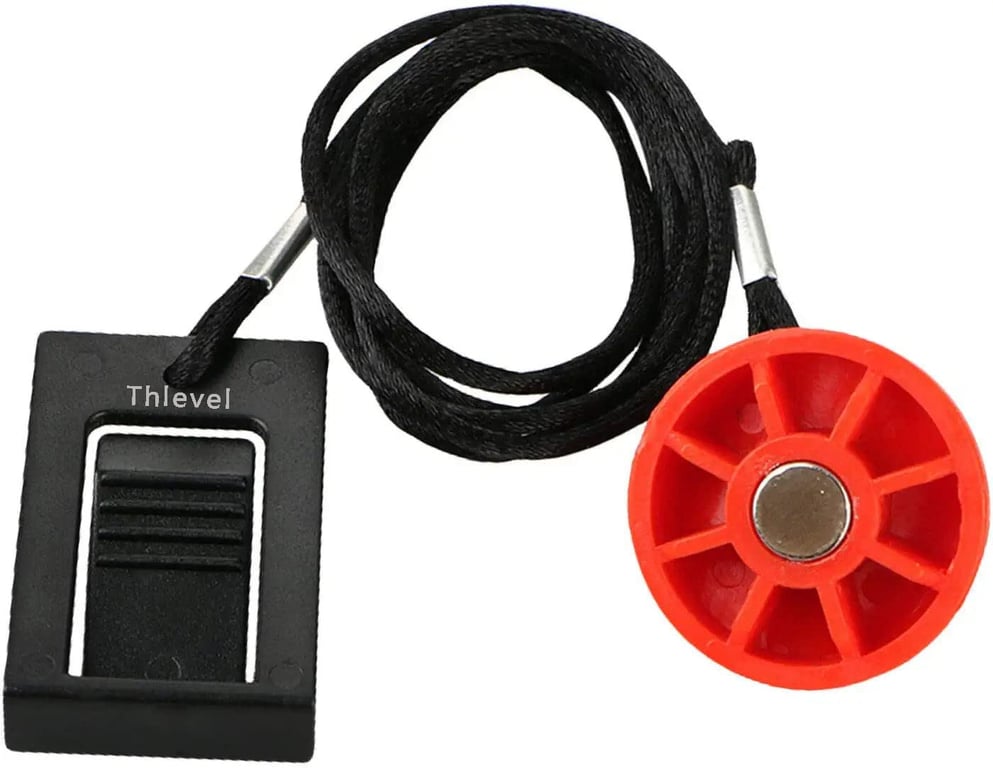

Before any calibration, connect the treadmill to a reliable power source. Insert the safety key; if the original key is missing or damaged, the Thlevel Universal Treadmill Safety Key provides a cost‑effective replacement. This magnetic key clips to clothing and stops the belt instantly if the user moves too far from the console, protecting both the user and the motor during calibration.

Step 3: Reset the Console Settings

Turn the treadmill on and locate the reset or factory‑default option in the console menu. Resetting clears any previous custom calibrations that may interfere with the new measurements. Follow the on‑screen prompts to confirm the reset. After resetting, the display should read zero for speed and incline.

Step 4: Calibrate Speed Using a Stopwatch

Set the treadmill to a low speed, such as 1.0 mph. Start the belt and simultaneously start a digital stopwatch. Count the number of belt revolutions in a 30‑second interval; most treadmills display belt revolutions per minute (RPM) on the console. Multiply the RPM by the belt length (in feet) and divide by 60 to obtain the actual speed. Compare this calculated speed with the displayed speed. If there is a discrepancy, adjust the speed calibration knob (often located near the motor housing) in small increments until the displayed speed matches the calculated value. Repeat the process at 3.0 mph and 5.0 mph to ensure linear accuracy across the range.

Step 5: Verify Motor Performance

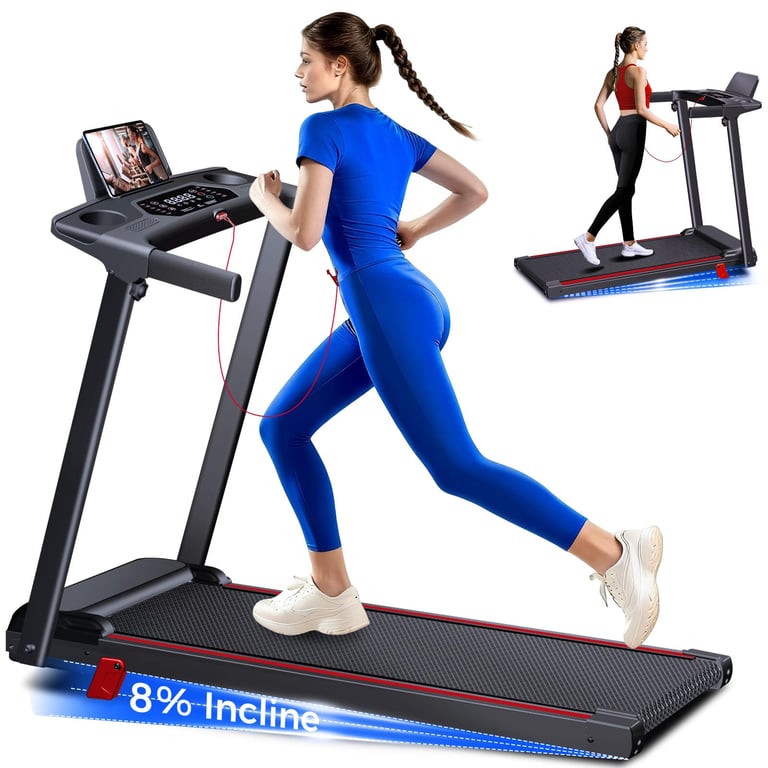

During speed calibration, listen for abnormal noises. A brushless motor, such as the 3.0 HP unit found in the ZPUFDYM Folding Incline Treadmill (price $189.99, rating 4.2/5 from 383 reviews), should operate quietly. Excessive vibration may indicate loose bolts or an unbalanced belt, which can affect speed accuracy. Tighten any loose screws with the Phillips‑head screwdriver and re‑check the belt tension according to the manufacturer’s specifications.

Step 6: Calibrate the Incline Mechanism

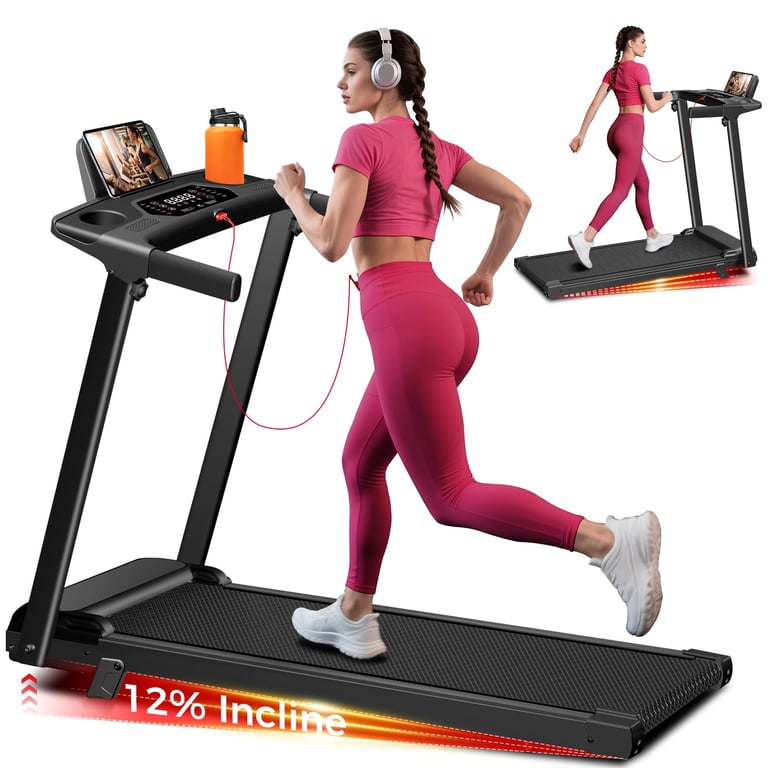

Most folding treadmills use a manual incline lever or a motorized incline system. For manual models, the incline is adjusted by moving a lever that changes the deck angle. To calibrate, set the treadmill to a flat position (0 % incline) and place a digital inclinometer on the deck. The reading should be close to 0 °. If it deviates, adjust the incline stop screw located near the lever until the inclinometer reads 0 °. Next, raise the incline to the maximum setting (e.g., 8 % for the ZPUFDYM or 12 % for the Aiteid Compact Home Treadmill, price $189.99, rating 4.2/5 from 601 reviews). Verify the angle with the inclinometer; if the reading differs, adjust the stop screw proportionally. Record the adjustment values for future reference.

Step 7: Test the Shock‑Absorption System

Both recommended treadmills feature multi‑layer shock‑absorption decks. The ZPUFDYM includes a five‑layer system with ten silicone absorbers, while the Aiteid offers a six‑layer deck with four high‑density silicone pads. To ensure these systems do not affect speed calibration, perform a short walk at 2.5 mph on each incline setting and observe whether the console speed remains stable. If the speed fluctuates, re‑tighten the deck bolts and confirm that the deck is evenly seated on the frame.

Step 8: Record Calibration Data

Document the final calibration settings in a notebook or digital file. Include the speed verification values at low, medium, and high settings, as well as the incline adjustments for each level. This record simplifies future recalibrations and helps identify drift over time.

Tips & Pro Tips

• Perform calibration in a temperature‑controlled room; extreme heat or cold can cause belt expansion or contraction, affecting speed readings.
• Use a dedicated treadmill mat to reduce vibration transmitted to the floor, which can improve measurement accuracy.
• For users who prefer a hands‑free safety solution, the magnetic safety key eliminates the need for a mechanical key and ensures immediate shutdown if the user steps away.
• When adjusting the incline, make small incremental changes; large adjustments can damage the deck hinges.
• Schedule calibration checks every three months to maintain consistent performance.

Troubleshooting

Speed displays higher than actual: Check belt tension; a loose belt can slip, causing the motor to run faster than the belt moves. Tighten the belt according to the manual.

Incline does not hold position: Inspect the incline lock lever for wear. Replace worn components with OEM parts if available.

Unexpected noise during calibration: Verify that the motor mount bolts are secure and that the shock‑absorption pads are correctly positioned.

Conclusion

Calibrating speed and incline on a folding treadmill ensures that each workout aligns with the intended intensity, reduces the risk of injury, and extends the machine’s lifespan. By following the outlined steps, using appropriate tools, and referencing the recommended products, one can achieve precise and reliable performance. Regular maintenance and periodic recalibration will keep the treadmill operating at peak efficiency.

Products Mentioned in This Guide

Frequently Asked Questions

Why is it important to calibrate the speed and incline on a folding treadmill?

Calibration ensures workout intensity matches your plan and helps prevent injury by providing accurate speed and slope readings.

What tools are required to calibrate a folding treadmill’s speed and incline?

You’ll need a Phillips‑head screwdriver, a level or bubble level, and a digital stopwatch or smartphone timer.

How do you verify the treadmill is level before calibrating?

Place the bubble level on the treadmill deck; adjust the feet until the bubble centers, indicating a flat surface.

What is the step‑by‑step process for calibrating treadmill speed?

Run the treadmill at a known speed, time a set distance with a stopwatch, compare the measured speed to the display, and adjust the speed sensor using the screwdriver until they match.

How can I troubleshoot incline calibration if the treadmill shows incorrect slope values?

Check the incline sensor screws for tightness, ensure the treadmill is level, and recalibrate by setting the incline to 0°, confirming the deck is flat, then adjust the sensor until the displayed angle aligns with a measured angle.
