How to Choose Replacement Motors for Folding Treadmills: Ultimate Compatibility Guide (Specs, Fit & Installation)
Introduction
Choosing a replacement motor for a folding treadmill can be a daunting task, especially when the market offers a wide range of specifications and compatibility claims. This guide equips readers with the knowledge required to evaluate motor power, voltage, and mechanical fit, while also highlighting a proven product that meets the most common needs. By the end of the article, one will understand how to read motor datasheets, verify model compatibility, and perform a reliable installation.
The guide is structured to move from foundational concepts to practical decision‑making tools, ensuring that both novice enthusiasts and seasoned technicians can follow the recommendations with confidence.
Background and Context
Folding treadmills rely on a DC drive motor to convert electrical energy into the belt’s motion. Unlike stationary models, folding units often have space constraints that affect motor mounting, wiring length, and cooling airflow. The motor’s horsepower (HP) rating indicates the maximum continuous load it can sustain, while the voltage rating (typically 110 V or 130 V) determines the power supply requirements.
Two performance metrics dominate the selection process:
- Duty rating: The continuous horsepower the motor can deliver without overheating.
- Peak rating: The short‑term power the motor can supply during intense sprints.
Understanding these metrics helps prevent premature wear, excessive noise, and safety hazards. Additionally, the motor’s physical dimensions—shaft size, mounting holes, and flywheel diameter—must align with the treadmill’s chassis.
Key Concepts for Selecting a Replacement Motor
1. Power Requirements
Most folding treadmills are designed for motors rated between 2.0 HP and 3.0 HP. A motor that is undersized will struggle during high‑intensity workouts, while an oversized motor may require a different voltage supply and could increase electricity consumption unnecessarily.
The Treadmill DC Drive Motor provides a 2.80 HP duty rating at 130 VDC and a 2.60 HP continuous rating at 110 VDC, fitting the sweet spot for most mid‑range folding models.
2. Voltage Compatibility
Household outlets in North America typically supply 110 V, while some commercial or higher‑end home gyms use 130 V. Selecting a motor that matches the existing wiring avoids costly rewiring projects. The featured motor supports both voltages, making it a versatile replacement.
3. Mechanical Fit
Key dimensions to verify include:
- Flywheel diameter (commonly 5–6 inches for folding units).
- Shaft diameter (often 5 mm or 6 mm).
- Mounting bolt pattern (usually four‑hole rectangular).
Consult the treadmill’s service manual or the motor’s part‑number list to confirm alignment. The motor listed above matches part numbers such as 314571, 362190, and 356334, which correspond to popular NordicTrack and ProForm folding models.
4. Durability and Noise
Materials with high wear resistance and corrosion protection extend service life, especially in humid home gyms. Low‑noise operation is essential for apartment dwellers. The upgraded construction of the featured motor promises reduced vibration and a quieter running experience.
Recommended Product Integration
When a treadmill’s original motor fails, replacing it with a reliable, compatible unit minimizes downtime. The following product has been selected because it satisfies the power, voltage, and mechanical criteria outlined above.

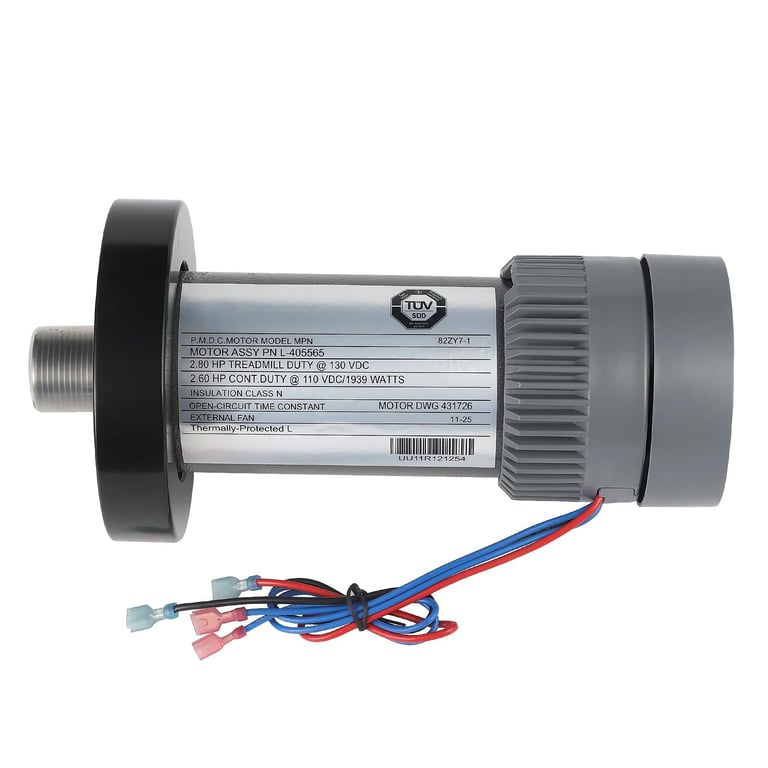

Treadmill DC Drive Motor offers:
- 2.80 HP duty rating at 130 VDC and 2.60 HP continuous rating at 110 VDC (1939 W).
- Compatibility with a broad range of treadmill models, including NordicTrack, ProForm, HealthRider, Gold's Gym, Epic, and Reebok (Icon).
- Upgraded high‑quality materials for wear resistance, corrosion resistance, and low noise.
- One‑year quality assurance for peace of mind.
These specifications make the motor an ideal candidate for most folding treadmill repairs.
Comparison and Selection Guide
| Feature | Standard Replacement Motor | Treadmill DC Drive Motor (Featured) |
|---|---|---|
| Horsepower (Duty) | 2.0 HP – 2.5 HP | 2.80 HP |
| Voltage Support | 110 V only | 110 V & 130 V |
| Compatibility Range | Limited to one brand | NordicTrack, ProForm, HealthRider, Gold's Gym, Epic, Reebok (Icon) |
| Noise Level | Moderate | Low (upgraded materials) |
| Warranty | 90 days | One year |
When evaluating alternatives, prioritize higher duty horsepower, dual‑voltage capability, and a broad compatibility list. The featured motor excels in all three categories, making it a top choice for most users.
Best Practices & Tips for Installation
- Verify Power Shut‑off: Disconnect the treadmill from the mains and wait five minutes to ensure capacitors discharge.
- Document Wiring: Photograph the original motor connections before removal; label each wire with masking tape.
- Check Alignment: Use a level to ensure the motor mount sits flush with the frame; misalignment can cause premature bearing wear.
- Secure the Flywheel: Tighten the flywheel bolt to the manufacturer’s torque specification (usually 8–10 Nm).
- Test Before Reassembly: Power the treadmill with the new motor for a short run to confirm correct speed response and noise levels.
- Lubricate Moving Parts: Apply a thin layer of silicone‑based lubricant to the belt rollers and motor shaft to reduce friction.
- Update Firmware: Some modern treadmills require a firmware reset after motor replacement; consult the user manual for the procedure.
Following these steps reduces the risk of electrical faults, ensures optimal performance, and extends the lifespan of the new motor.
Frequently Asked Questions
1. Can I use a 130 V motor on a 110 V outlet?
Yes, the featured motor is dual‑rated. When installed on a 110 V circuit, it operates at the 2.60 HP continuous rating, which is still sufficient for most folding treadmills.
2. How do I know if my treadmill model is compatible?
Check the part‑number list in the product description. The motor matches part numbers 314571, 362190, 356334, 405618, 349568, and C3364B4370M, covering popular NordicTrack and ProForm folding models.
3. Will the new motor increase the treadmill’s speed range?
The motor’s peak horsepower may allow slightly higher maximum speeds, but the treadmill’s controller firmware typically limits the speed range to protect the belt and frame.
4. Is professional installation required?
While a skilled DIYer can replace the motor using the steps above, professional service ensures compliance with warranty terms and local electrical codes.
5. What should I do if the motor makes excessive noise after installation?
Re‑check the flywheel torque, ensure the motor mount is level, and verify that the belt is properly tensioned. If noise persists, the motor may be defective and should be returned under the one‑year warranty.
6. Does the motor come with a cooling fan?
The motor includes an integrated fan designed for the voltage setting chosen during installation. No additional fan is required.
7. Can I replace the motor on a treadmill that folds automatically?
Yes, provided the motor’s dimensions fit within the folding chassis. The featured motor’s compact design is specifically engineered for folding units.
Conclusion
Selecting the appropriate replacement motor for a folding treadmill involves assessing horsepower, voltage compatibility, mechanical fit, and durability. The Treadmill DC Drive Motor meets these criteria with a 2.80 HP duty rating, dual‑voltage support, and a broad compatibility list, making it a reliable choice for most users. By following the installation best practices outlined, owners can restore full functionality, enjoy quieter operation, and extend the lifespan of their equipment.
Products Featured in This Guide
Treadmill DC Drive Motor
Key Specs: 2.80 HP duty @ 130 VDC, 2.60 HP continuous @ 110 VDC, 1939 W, compatible with NordicTrack, ProForm, HealthRider, Gold's Gym, Epic, Reebok (Icon).
Why Featured: Provides the optimal power‑to‑size ratio for folding treadmills, supports dual voltage, and includes a one‑year quality assurance.
Frequently Asked Questions
How do I determine the correct horsepower rating for a folding treadmill motor?
Match the original motor’s HP or choose a rating equal to or slightly higher, ensuring it can handle the treadmill’s maximum speed and user weight.
What voltage and amperage specifications should I check before buying a replacement motor?
Verify the treadmill’s supply voltage (e.g., 110‑120V or 220‑240V) and the motor’s amperage draw to avoid overloads or wiring issues.
Can I use a motor from a non‑folding treadmill as a replacement for a folding model?
Only if the motor’s dimensions, mounting brackets, and cooling clearance fit the folding unit’s limited space.
How important is the motor’s physical size and mounting pattern for compatibility?
Exact dimensions and bolt‑hole patterns are critical; even a small mismatch can prevent proper installation or cause vibration.
What are the basic steps to install a replacement motor on a folding treadmill?
Disconnect power, remove the old motor, align the new motor with mounting brackets, reconnect wiring according to the wiring diagram, and test for proper operation.
